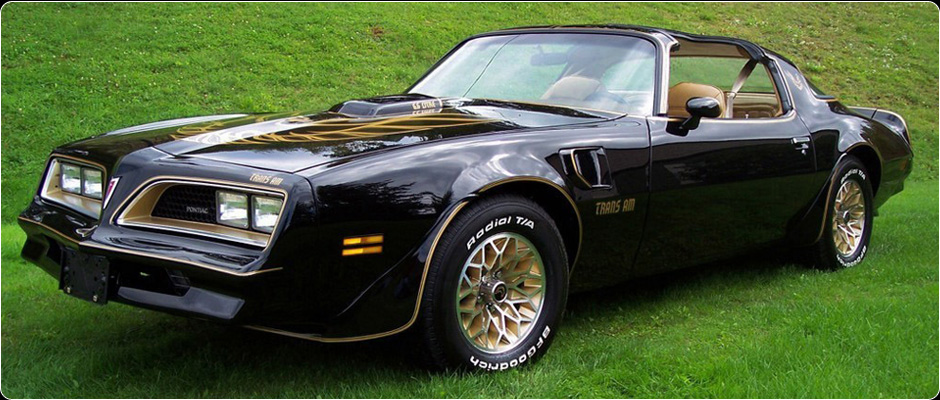

The 1970s saw the end of the muscle car era. Government emissions regulations and soaring gas prices wreaked havoc on performance. But the decade, aided by one classic movie, did produce one iconic muscle car that was known much more for its attitude than its performance. We have resurrected the attitude and sent it to the gym for a serious infusion of performance, all within the confines of the original look. BKPE is proud to introduce the Trans Am Bandit–Stage I.

We invite our clients to review these specifications and available options and then click on Pricing Information to obtain information on how to order your own Bandit.

Please note that this vehicle is under development and these specifications may change without advanced notice.


Body Type

2 Door Coupe with Available T-Tops
General Motors Corporation – Pontiac Division
Fully Restored with Concourse Body Work and Paint
BKPE 12 Month/12,000 Mile Bumper-to-Bumper, Limited Warranty




GM 6.2 LS3 EFI V-8 Engine – 500hp
GM ECU, MAF and Harness (Performance Optimized)
GM Drive-By-Wire Throttle Body
GM Accessory Drive
Powermaster Performance Starter
SLP Underdrive Pulley
Spectre Performance Single-Feed Cold Air Intake
Moroso Oil Pan & High Volume Pump & Pickup

Nitrous Oxide

NOS 125hp Computer Controlled Nitrous Oxide Injection System*

Cooling System

AutoRad Cooling System with Dual Electric Fans
AutoRad Aluminum Radiator Support
Street and Performance 160 Degree Thermostat
B&M Oil Cooler with Red Horse Fittings and Stainless Steel Lines

Fuel Delivery

Original-Style Fuel Tank Set-Up for EFI & In-Tank Pump
Aeromotive A1000 Fuel Pressure Regulator and In-Line Fuel Filters
Custom Stainless Steel Lines with Red Horse Fittings
Unique Stealth Routing of Fuel Lines for Minimum Visibility
G5 Camaro Engine Cover


Dynatech MuscleMaxx Long Tube Headers
Stainless Steel 3” True-Dual Exhaust System with X-Pipe
Magnaflow Mufflers


American Autowire Highway 22 Wiring Harness
Unique Stealth Routing of Harness for Minimum Visibility
Optima Red Top Deep Cycle 12V Battery (Trunk Mounted)


American Powertrain Tremec TKO 5-Speed Manual Transmission
American Powertrain Mechanically-Actuated Clutch
Modified Original-Style Hurst Shifter
Original-Style Shifter Ball Knob
Energy Suspension Polyurethane Transmission Mount

Modified GM 4L70E SuperMatic 4-Speed Automatic Transmission*
    Brand New GM 4L70E SuperMatic 4-Speed Automatic Transmission
    Street and Performance Harness and TCU (Performance Optimized)
    GM Stall Converter
    Original-Style Shifter and Shifter Knob with LED Shifter Lighting
    Energy Suspension Polyurethane Transmission Mount

Front Suspension

Heidt’s Pro-G Front Sub-Frame and Suspension
    Heidt’s Powdercoated Front Sub-Frame
    Heidt’s Rack and Pinion Steering with GM Type 2 Power Assist
    Heidt’s Independent Front Suspension with 2” Drop Spindles
    Heidt’s Tubular Steel Upper and Lower Control Arms
    Heidt’s Billet Coil-Over Adjustable Shocks
    Heidt’s 1-1/4” Anti-Sway Bar
    Heidt’s Sub-Frame Connectors
    Energy Suspension Polyurethane Bushing and Mounts

Rear Suspension

Heidt’s 4-Link Powdercoated Rear Suspension
    Heidt’s Adjustable 4-Link Mounts for Suspension Tuning
    Heidt’s Adjustable Coil-Over-Shocks
    Heidt’s Panard Bar


The Driveshaft Shop 3.5” Balanced Aluminum Driveshaft

Rear Axle

Heidt’s Rear Axle
    Ford 9" Rear End with 31 Spline Axles
    3.73:1 Ring and Pinion Gear Set
    Eaton Positraction Unit

Traction Control

GM/Bosch Anti-Lock Brake System/Electronic Stability Control*


Wilwood/SSBC 4-Wheel Power Disc Package
    SSBC 9” Booster and Polished Master Cylinder
    Wilwood Dynalite Big Brake Package
        12.1" SRP Cross-Drilled and Slotted Rotors (F&R)
        4 Piston Calipers (F&R)
        Wilwood Built-In Emergency Brake (Rear Only)
    Original E-Brake with Wilwood Cables
    Unique Stealth Routing of Brake Lines for Minimum Visibility
    Custom Stainless Steel Brake Lines

Wheels and Tires

Original-Style Snowflake Wheels
    Front:  Year One 18x9” “Snowflake” Wheels
                Goodyear Eagle Supercar (235/45ZR-18) Tires
    Rear:   Year One 18x10” “Snowflake” Wheels
                Goodyear Eagle Supercar (295/35ZR-18) Tires

  back to top



Original-Style 1977 Trans Am Custom Interior Package
Lloyd’s 4-Piece Floor Mats with "Bandit" Embroidery
Dynamat Custom Cut Sound and Heat Insulation
Chrome Pedal Pad Trim
Cut-Pile Carpet


Original-Style Console
Console Mounted Heated Seat Controls*
Original-Style Floor Mounted Shifter
LED Courtesy Lighting
Original-Style Rear Console*


Original-Style Fixed Steering Column
Original-Style Formula Steering Wheel
Original-Style Tilt Steering Column*


Original-Style 1977 Trans Am Instruments
    5000 RPM Tachometer with Built-In Clock
    100 MPH Speedometer
    Fuel Gauge
    Oil Pressure/Water Temperature Combination Gauge
LED Gauge Lighting

Air Conditioning

Vintage Air Gen IV HVAC System with Electronic Controls
Billet Aluminum Bulkhead Located Under Right Fender
Custom AC and Heater Core Lines
AutoRad Condenser
Original-Style HVAC Controls
Original-Style HVAC Vents
Sanden A/C Compressor

Convenience Equipment

DSE Selecta-Speed Windshield Wiper System
12-Volt Auxiliary Power Outlet in Ashtray
LED Auxiliary Lighting
    Ash Tray Light
    Dome Light
    Foot-Well Courtesy Lights
    Glove Box Light
    Under-the-Hood Lights
Electric-Life Power Windows*
Electric-Life Power Door and Trunk Locks*
Heated Front Seats with Lumbar Support*

Color Availability

All Factory Colors

Safety Equipment

Original 1977 Trans Am Safety Equipment
Seat Belts: Front: Original-Style Custom 3-Point Safety Belts (2x)
  Rear: Original-Style Custom 2-Point Lap Bets (3x)
Electric Rear Window Defogger*


Radio Delete

Original-Style RPO U58/U80/UN9 AM/FM Stereo System*
    Antique Automobile Radio AM/FM/MP3 Stereo
    Kenwood Dash-Mounted Speakers
    Kenwood Package Shelf-Mounted 6x9 Speaker
    Original-Style Windshield-Mounted Antenna

Sony Xplode Hidden Entertainment System*
    Sony Xplode CDX-GT660UP Head Unit
    Sony Xplode XS-GS6920 6x9 3-Way Speakers (2x)
    Sony Xplode XS-GS1720 2-Way Speakers (2x)
    Sony Xplode XS-GS80L 8” Subwoofer
    Sony Xplode XM-GTR2202 Amplifier
    Autoloc Hidden Antenna


Spatter-Painted Trunk
Vinyl Trunk Mat
LED Trunk Light

  back to top



Original-Style Trans Am Exterior Package
    Shaker Hood
    “Screaming Chicken” Hood Decal
    Original “Trans Am” Decal Package
    Original-Style Fender Vents
Smoothed Firewall
Spectre Performance Radiator Support Shroud
Lizard Skin Ceramic Undercoating
Original-Style Door Edge Guards*
Original-Style Roof Drip Moldings*
Original-Style Vinyl Body-Side Moldings*
Original Style Window and Hood Reveal Moldings*

Safety Equipment

Stealth LED Third Brake Light Hidden in the Rear Panel
Dual Outside Sport Mirrors
Tinted Windows*

Color and Graphics Availability

Cameo White
Chesterfield Brown
Firethorn Red
Goldenrod Yellow
Starlight Black
Sterling Silver


Original-Style Ground Effects Kit
Original-Style Rear Spoiler


Painted Steel Top
Painted Steel Top with T-Tops*


HID Xenon Headlights with Halo Rings
LED Parking/Fog Lights
LED Side Marker Lights
LED Tail Lights with Sequential Turn Signal Indicators
LED Back-Up Lights
LED-Lit License Plate Frame

  back to top

* Denotes Optional Equipment

Because we are a custom design/build shop, we allow our customers to customize their BKPE Bandit-Stage I to make it as unique as they are. Thus, should you want us to design a Bandit-Stage I fit your vision of the ultimate vehicle, simply go to our Price Information page and tell us what you want or call our customer service department at 1-888-969-BKPE (2573).
Please note that these specifications are subject to change without notice. BKPE assumes no responsibility for any damages resulting from our changing vehicle specifications.
